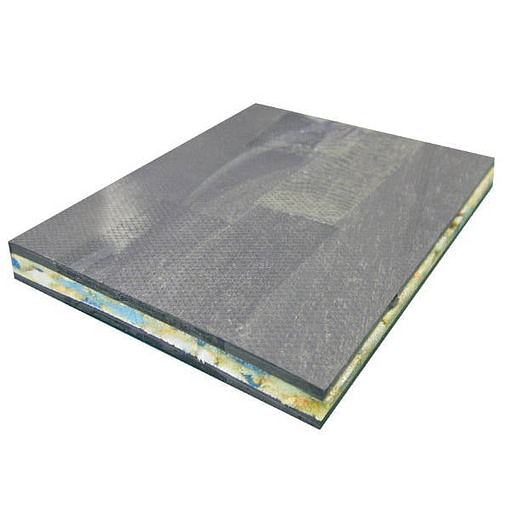

Isocheck Impact Mat 15 Soundproof Matting
The isocheck Impact Mat15 system is designed to reduce impact and airborne sound transmission through timber floors. Impact sound reduction is upto 40dB. Isocheck Impact 300 Impact Mat consists of three layers, 2 outer layers high density mass-loaded vintl and the middle is a 8mm isofibre core. When installed as part of a complete party floor construction the system enables a timber floor to meet the sound transmission standards of Approved Document E 2003 and amendments in 2004,2010, 2013 & 2015.
The boards are laid in a brickbond pattern. Thicker engineered flooring can be laid directly onto isocheck Impact Mat 15, but we recommend overlaying with 9mm moisture resistant mdf SEE LINK when fitting standard engineered or laminate flooring. Please make sure that the sub-floor is level prior to laying the Impact Mat, as the mat will not level your floor. Ideal for floor upgrades when looking to improve sound reduction under engineered wood floors.
Fit the Angled Flanking Band around the perimeter as you lay the boards SEE LINK, skirting is then fitted on top of the band, which can then be trim off. If the skirting boards are already on, fit the Isolation Strip SEE LINK against the skirting before laying the boards. This can be trimmed as necessary after installation of the boards.
Thickness of the boards are 15mm, width is 1000mm and length is 1200mm. Each board covers an area of 1.20m2. Total weight of each panel is 15.6kg.
Technical Data Sheet
monodeck_mat_15_-_data_sheet
